Open Cell T4 (Trackless, Lay On, Lay In, Closed Lay In)

SEPA T4 open cell ceiling systems; is an open ceiling system that consists of triangular «Δ» (delta) type panels which has 4mm base and 20/30mm height.

Category:
General Details

SEPA T4 open cell ceiling systems; is an open ceiling system that consists of triangular «Δ» (delta) type panels which has 4mm base and 20/30mm height. The cells can be different models of square and rectangular type in order to give the architects and customer limitless space for design.

Panels can be used with T15/ T24 or special carrier systems which also offers a trackless system with 2mm gap between the panels. There are 4 different carrier models. First one is lay in type with t15, the second one is closed lay in type with T15. The third one is lay on and the final one is swing down system all with 600×600 or 600x1200mm modules.

Sepa Open cell systems can be produced perforated with acoustic flee to fulfill various acoustic needs.

Sepa T4 open cell ceiling systems can be manufactured as single panels demounted which would be economical for transport or 600*600mm mounted panels in order to minimize the labor and installation time at the site.

Technical
Material Aluminium
Cell 50×50, 60×60, 75×75, 85×85, 100×100, 120×120, 150×150, 200×200
Height/Base 30 mm / 4 mm
Carrier System T15 and Swing Down
Color Standart Ral 9016 White, Ral 9006 Grey, Ral 9005 Black or Ral Choices

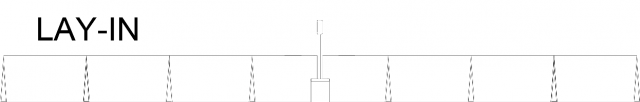

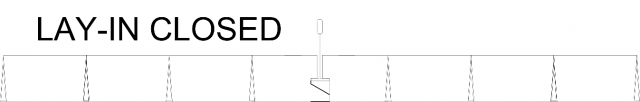

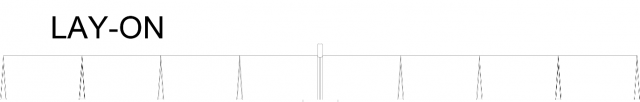

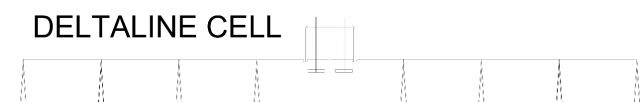

Technical Graphics
Gallery
